• Double Pillar


    Aarohi enterprise brings Continuous Plunger Type Hydraulic Screen Changer for the processing of thermoplastic extruders. The company was established in 1995 and progressing in the plastic industries from last 20 years. Aarohi offers a broad range of international quality screen changers. Today the company is also having a major customer of screen changers.

    Operations of Double Plunger Continuous Screen Changer:

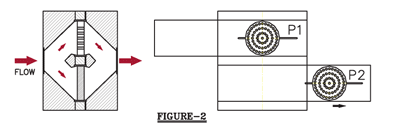

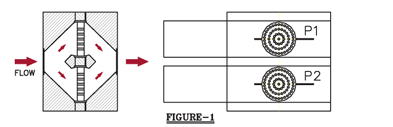

    Both the filters are working with new mesh inside the Screen Changer and the Plant is in working condition (Refer Fig. No. 1).   Remove the Breaker Plate P2 and the mesh. Replace the mesh after cleaning it properly (refer Fig. No. 2).


    Now take the new Breaker Plate station inside the housing for pre-filling & air venting operations done through venting channel (as shown in Fig No. 3).   Now Breaker Plate P2 comes in w orking condition as it was in Fig. No. 1.

    Echnical Specifications
    Sr. No. Model Out put Kg/Hr. Screen Size (mm) K.W.
    1. AEDP - 65 70 to 250 65 4.0
    2. AEDP - 80 150 to 350 80 5.1
    3. AEDP - 100 170 to 450 100 6.2
    4. AEDP - 120 240 to 700 120 10.0
    		  Application:
    • Master Batch Plant
    • Filler Plant
    • Pipe Plant
    • Texurising Plant
    • Polyester Plant
    • Re-cycling Plant
    • Sheet Plant
    • Non-woven Fabric Plant
    We excel in varied world-class industrial products that are known for being highly reliable, very productive and amazingly cost-effective as well. With best engineering processes, we manufacture products that give great results in any extrusion-processing environment.
